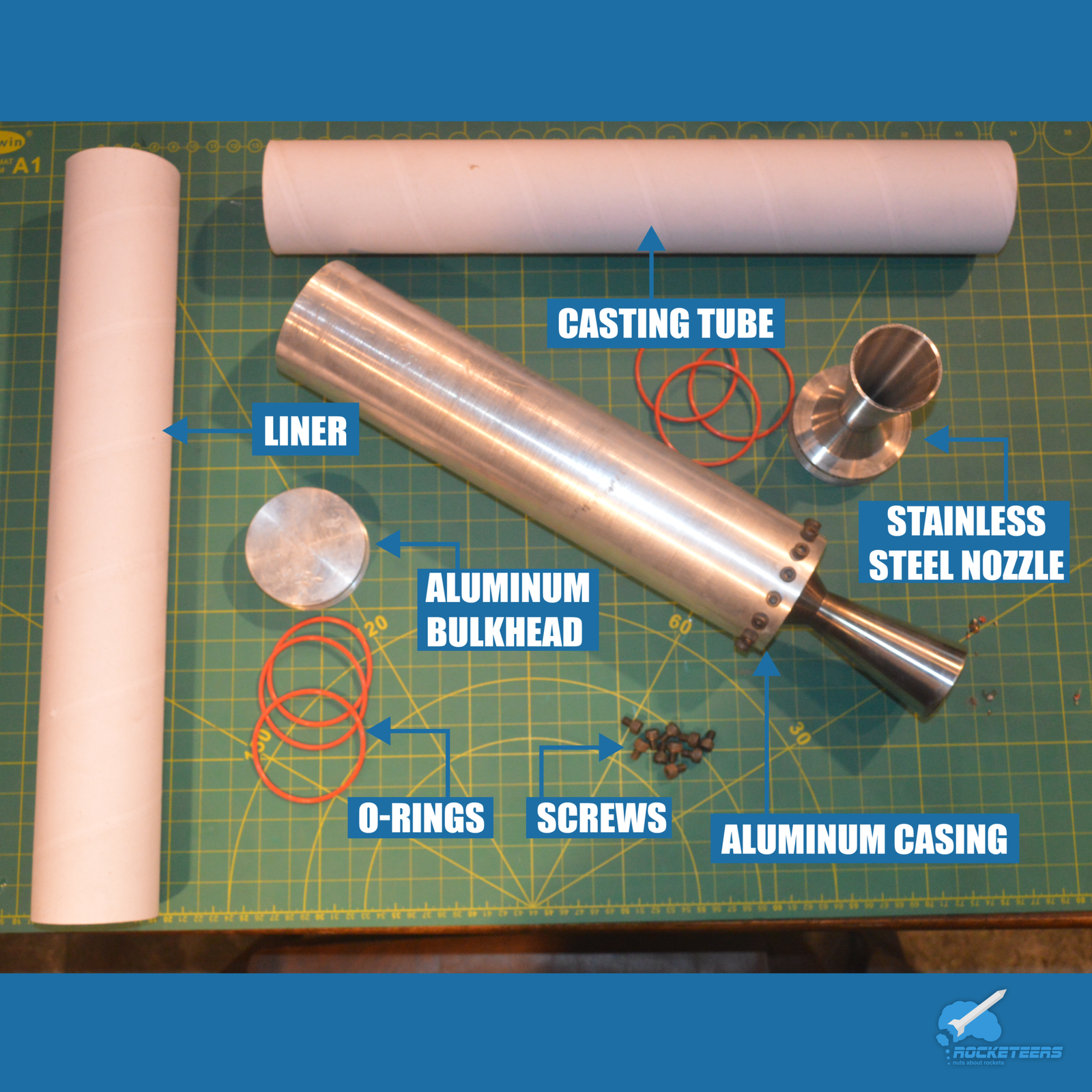

L-Class Motor (1000 – 2200 Ns)

Take your rocketry projects to the next level with our powerful precision CNC machined L Class Motor. Designed for advanced enthusiasts and professionals, this motor boasts several key features to enhance performance and reliability:

• Total Dry Weight : 1642 gms
• Full Assembly Dimensions:
  • Length – 482 mm
  • Outer Diameter – 84.8 mm

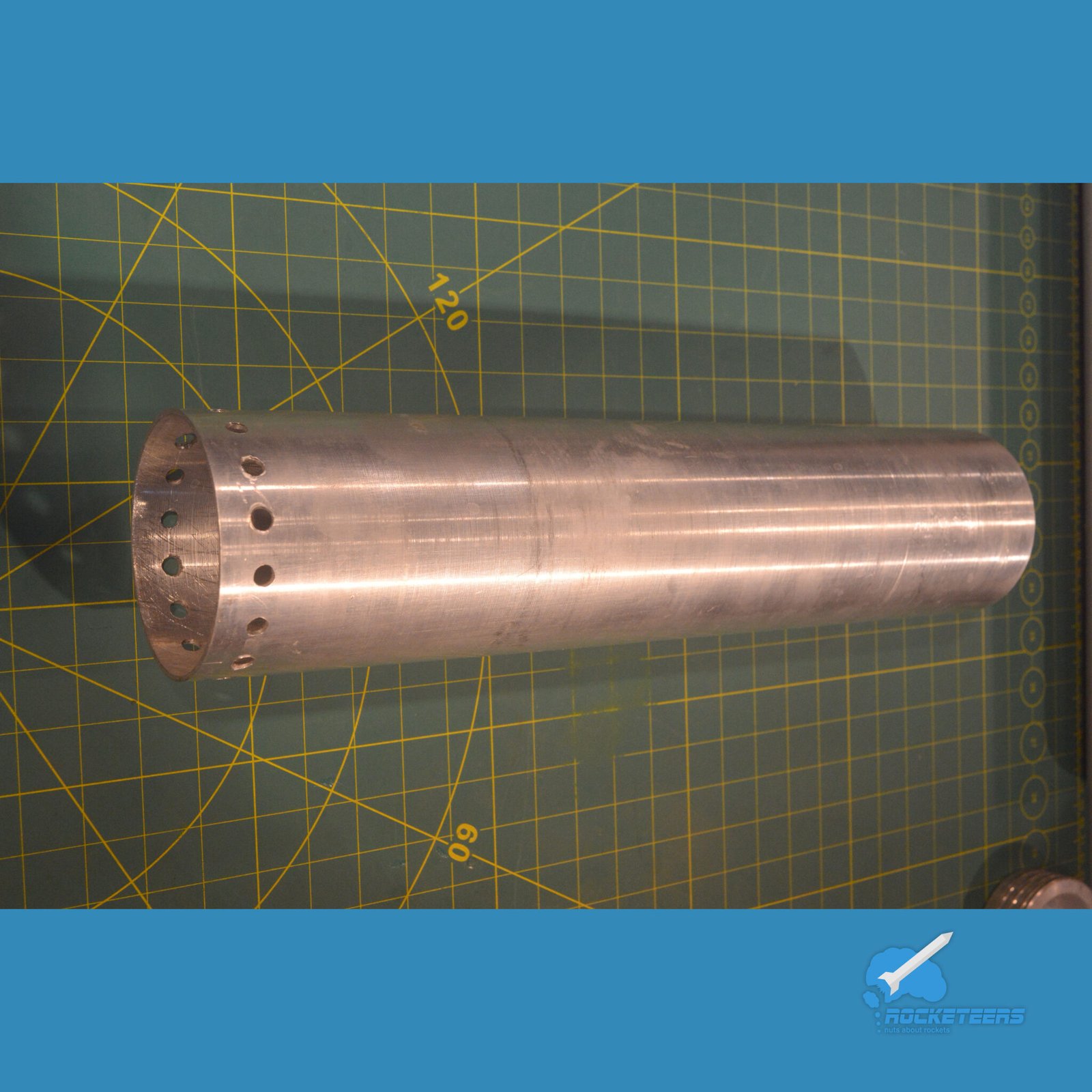

Aluminium Casing

• Specially sourced aerospace grade Aluminium alloy
• Weight : 506 gms
• Dimensions:
  • Casing length – 371 mm
  • Outer diameter – 84.8 mm
  • Inner diameter – 80.6 mm
• Includes 1 per pack

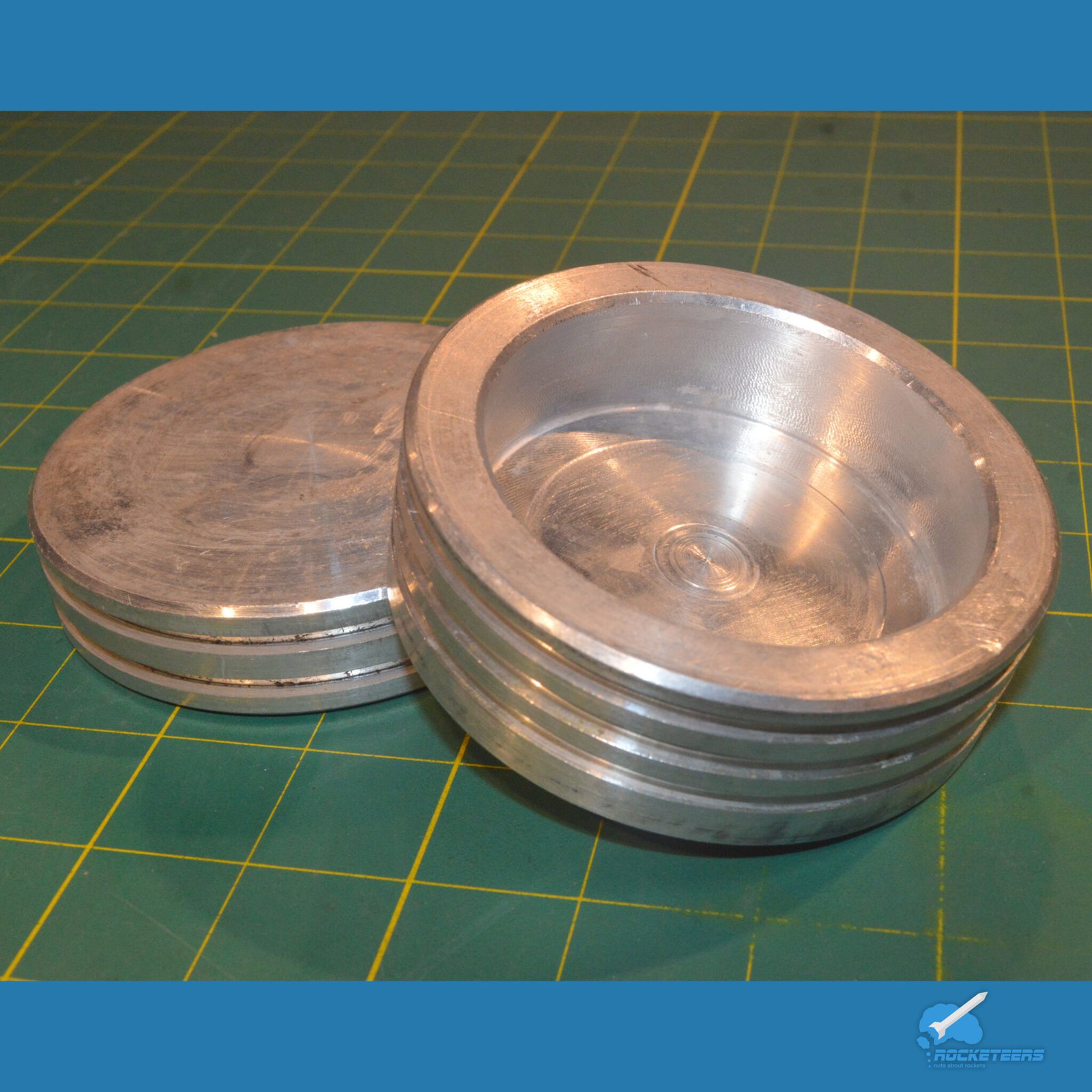

Aluminium Bulkhead

• Specially sourced aerospace grade Aluminium alloy
• Silicon O-ring hermetic seal
• Weight : 172 gms
• Dimensions:
  • Length – 25 mm
  • Diameter – 80.4 mm
• Includes 1 per pack

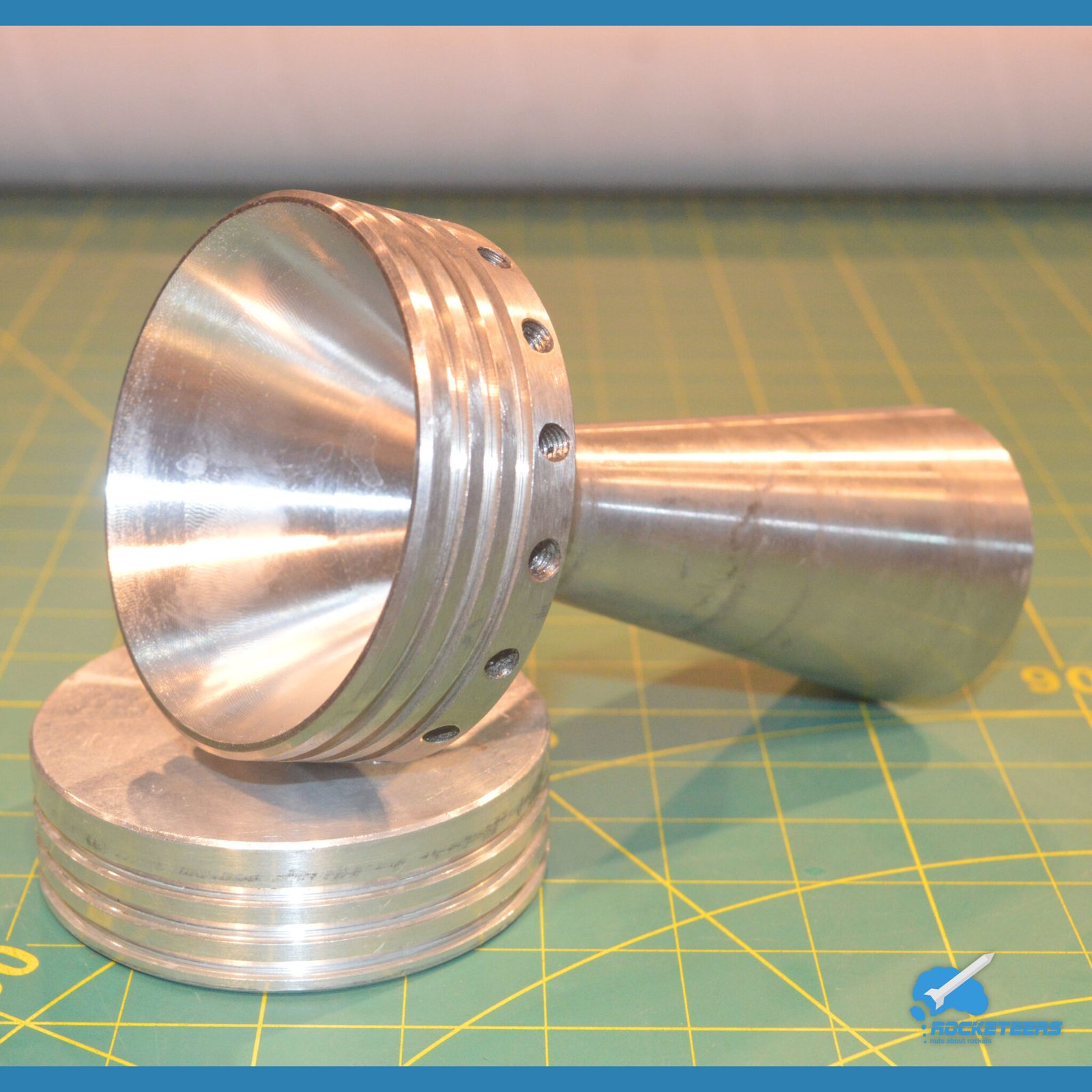

Stainless Steel Nozzle

• Specially sourced aerospace grade SS alloy
• Superior thermal performance enhances efficiency and longevity.
• Silicon O-ring hermetic seal
• Weight : 717 gms
• Dimensions:
  • Outer diameter – 80.4 mm
  • Length – 146 mm
• Includes 1 per pack

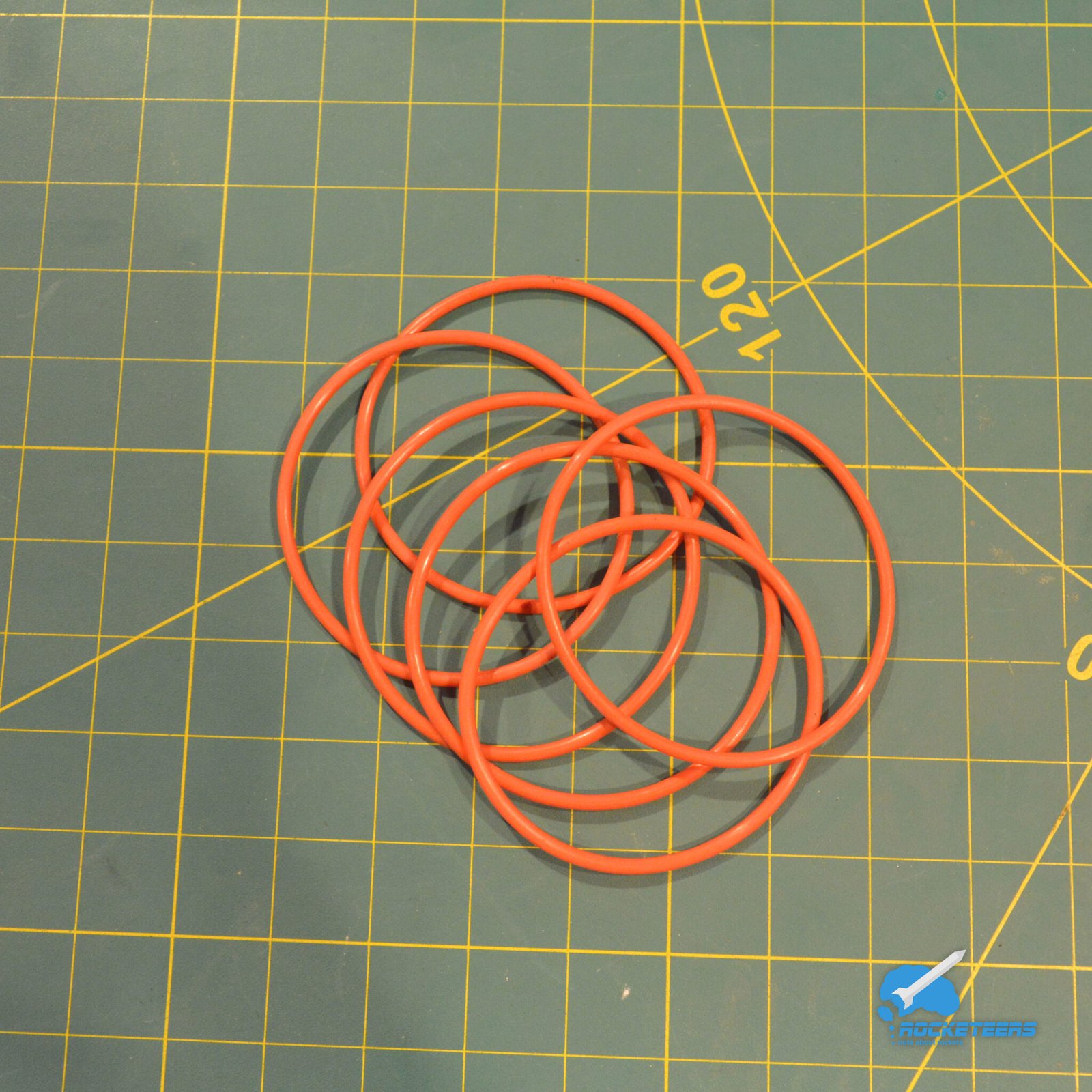

O Rings

• Weight : 11 gms
• High-Quality Silicon Hermetic Seals: Prevent gas leakage, ensuring optimal performance and safety.
• Includes 8 per pack

Screws

• Weight : 67 gms
• High tensile & high performance
• Secure Fastening: Maintains the integrity of the motor assembly under high-pressure conditions.
• Includes 20 per pack

Liner

• Weight : 125 gms
• Flame resistant resin bonded high BF Sack-Kraft tube
• Protection: Shields the motor casing from high-temperature exhaust gases, extending the motor’s lifespan.
• Includes 2 per pack

Casting Tube

• Weight : 46 gms
• Flame resistant resin bonded high BF Sack-Kraft tube
• Includes 2 per pack

Engineered to meet the highest standards of rocketry performance, our L Class Motor delivers reliable and powerful thrust. This makes it the perfect choice for ambitious rocketry projects. Achieve new heights with this essential component, designed to offer superior performance and durability for advanced rocketry enthusiasts and professionals.
