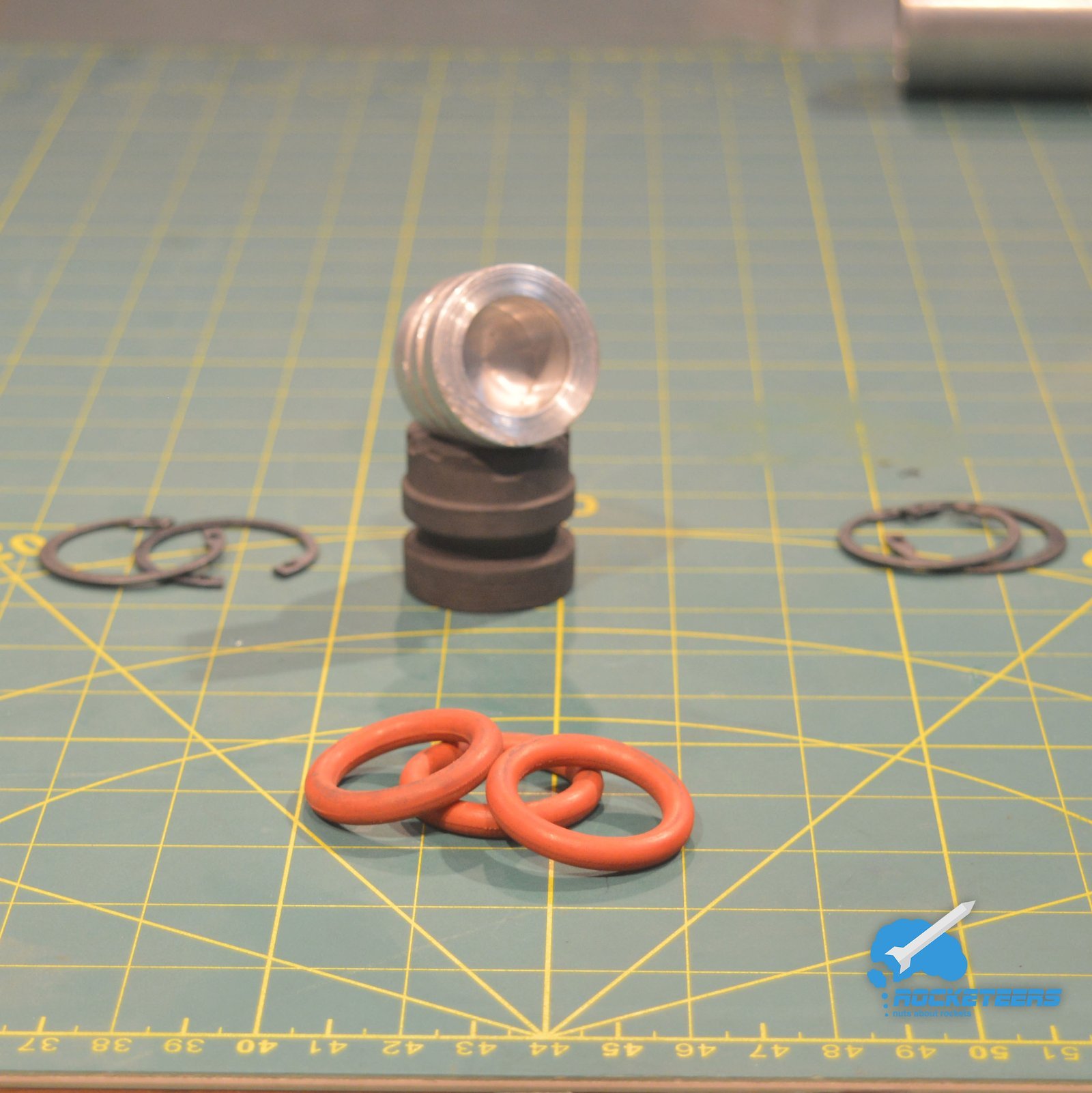

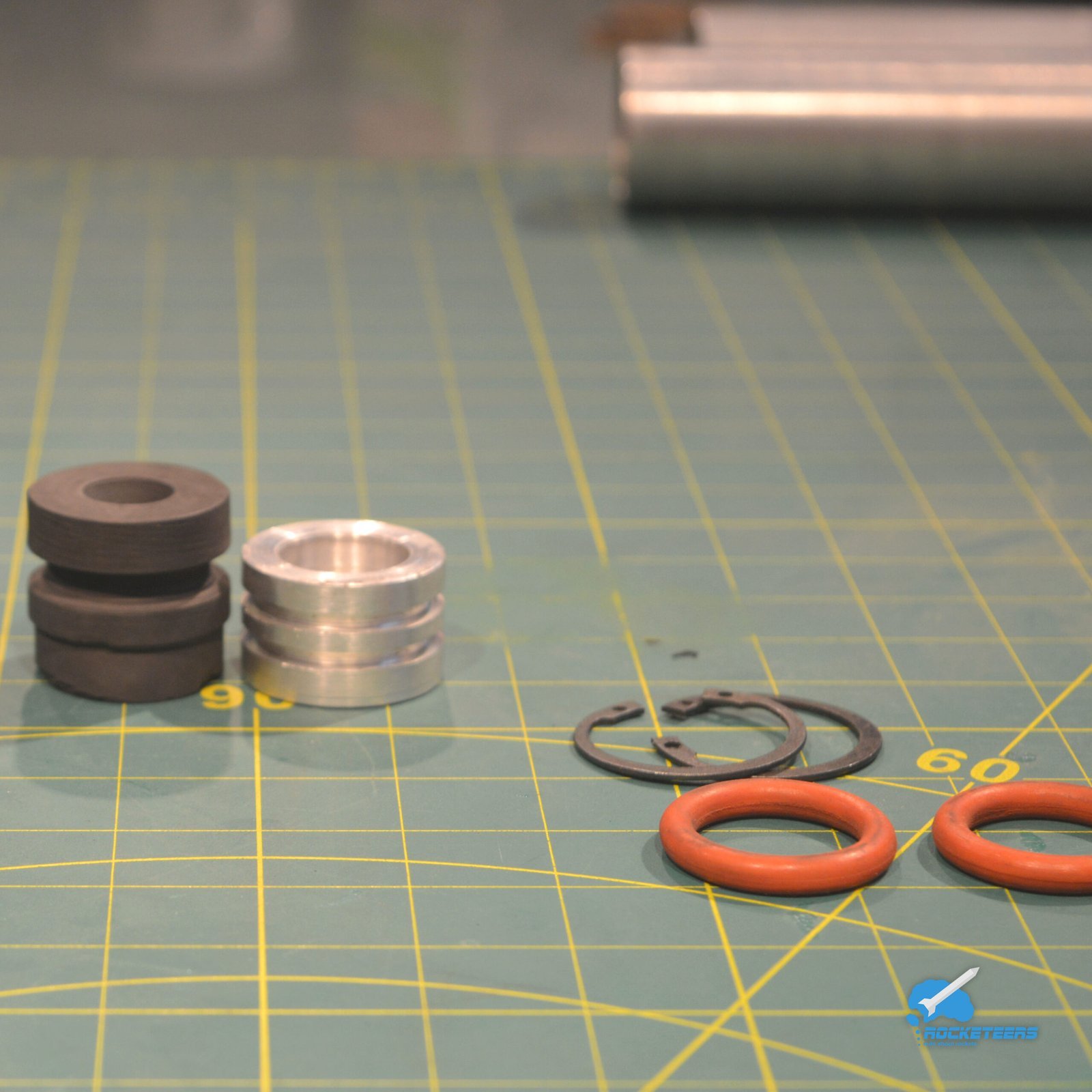

H-Class Motor (100 – 280 Ns)

Elevate your rocketry projects with our high-performance, precision CNC machined H Class Motor. Designed for serious hobbyists and professionals, this motor offers top-notch features:

Aluminium Casing

• Specially sourced aerospace grade Aluminium alloy
• Weight : 248 gms
• Dimensions:
  • Casing length – 260 mm
  • Outer diameter – 38.2 mm
  • Inner diameter – 31.8 mm
• Includes 1 per pack

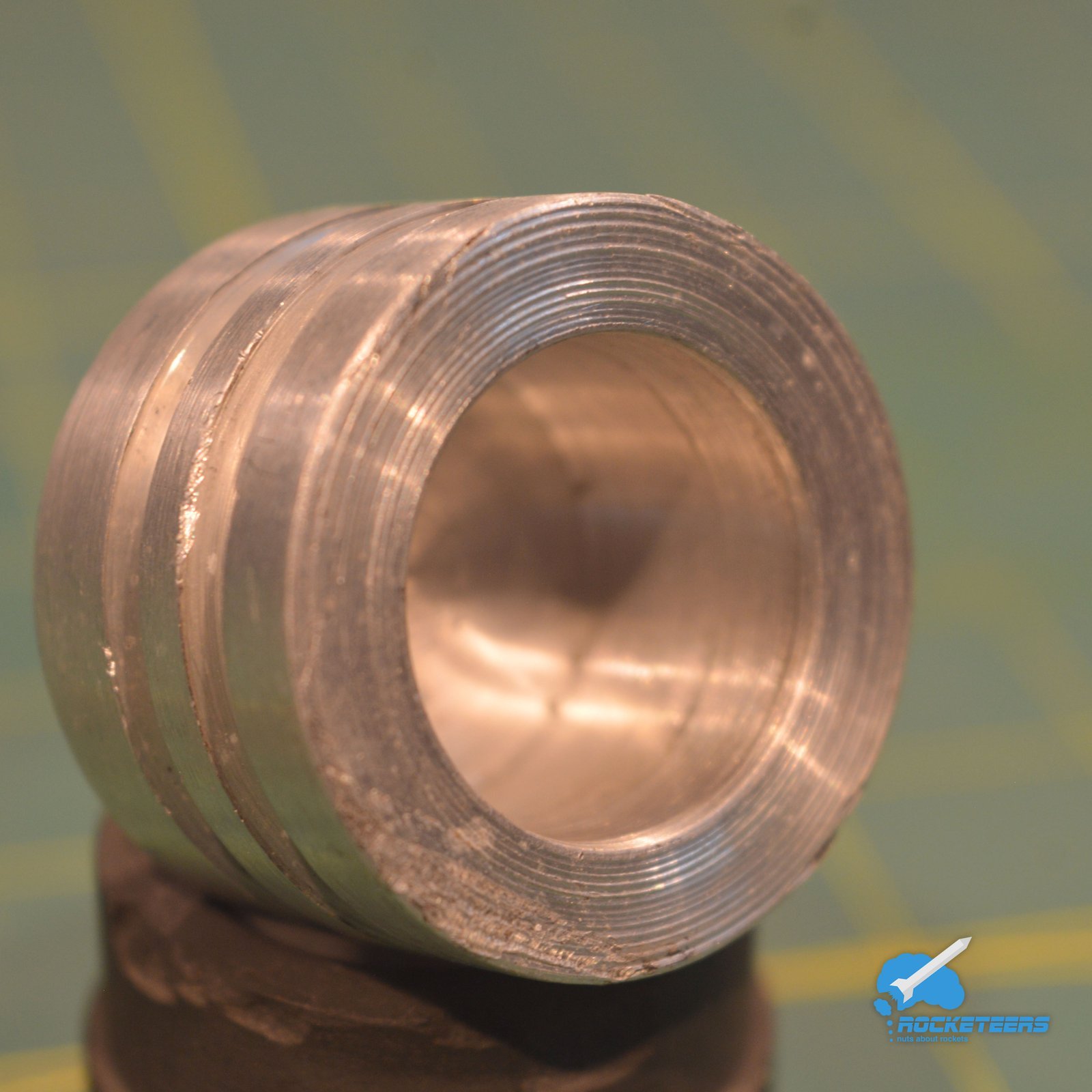

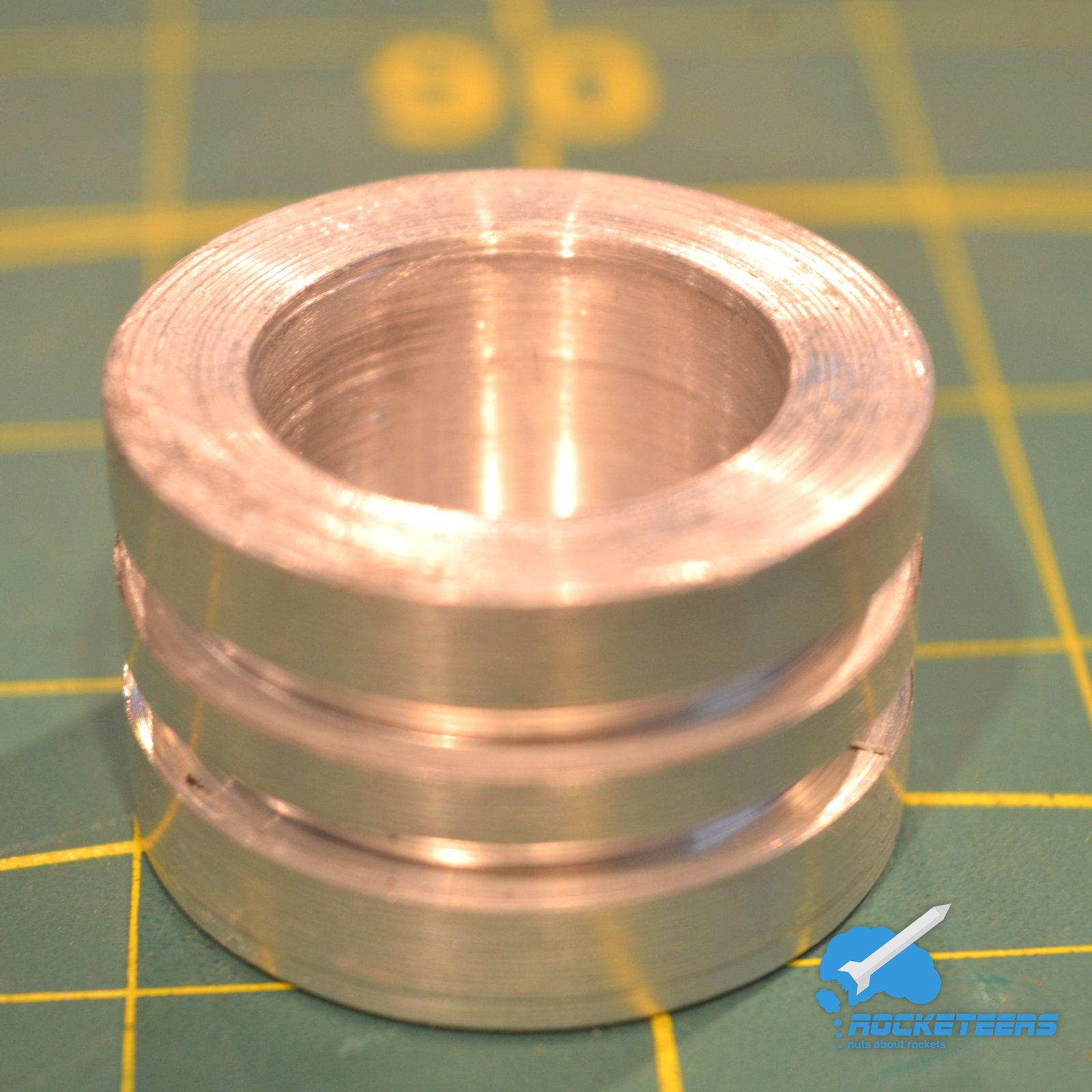

Aluminium Bulkhead

• Specially sourced aerospace grade Aluminium alloy
• Silicon O-ring hermetic seal
• Weight : 25 gms
• Dimensions:
  • Length – 20 mm
  • Diameter – 31.5 mm
• Includes 1 per pack

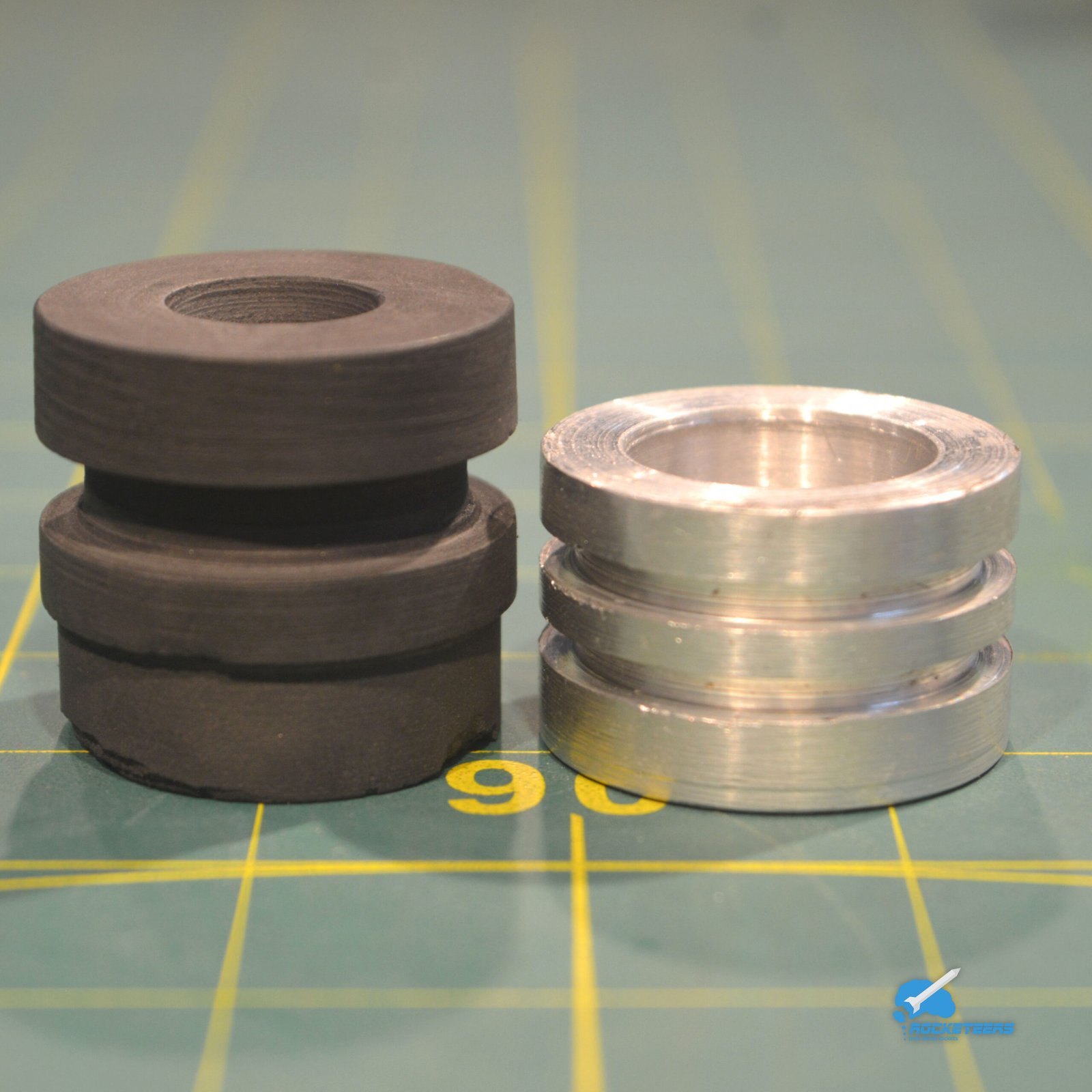

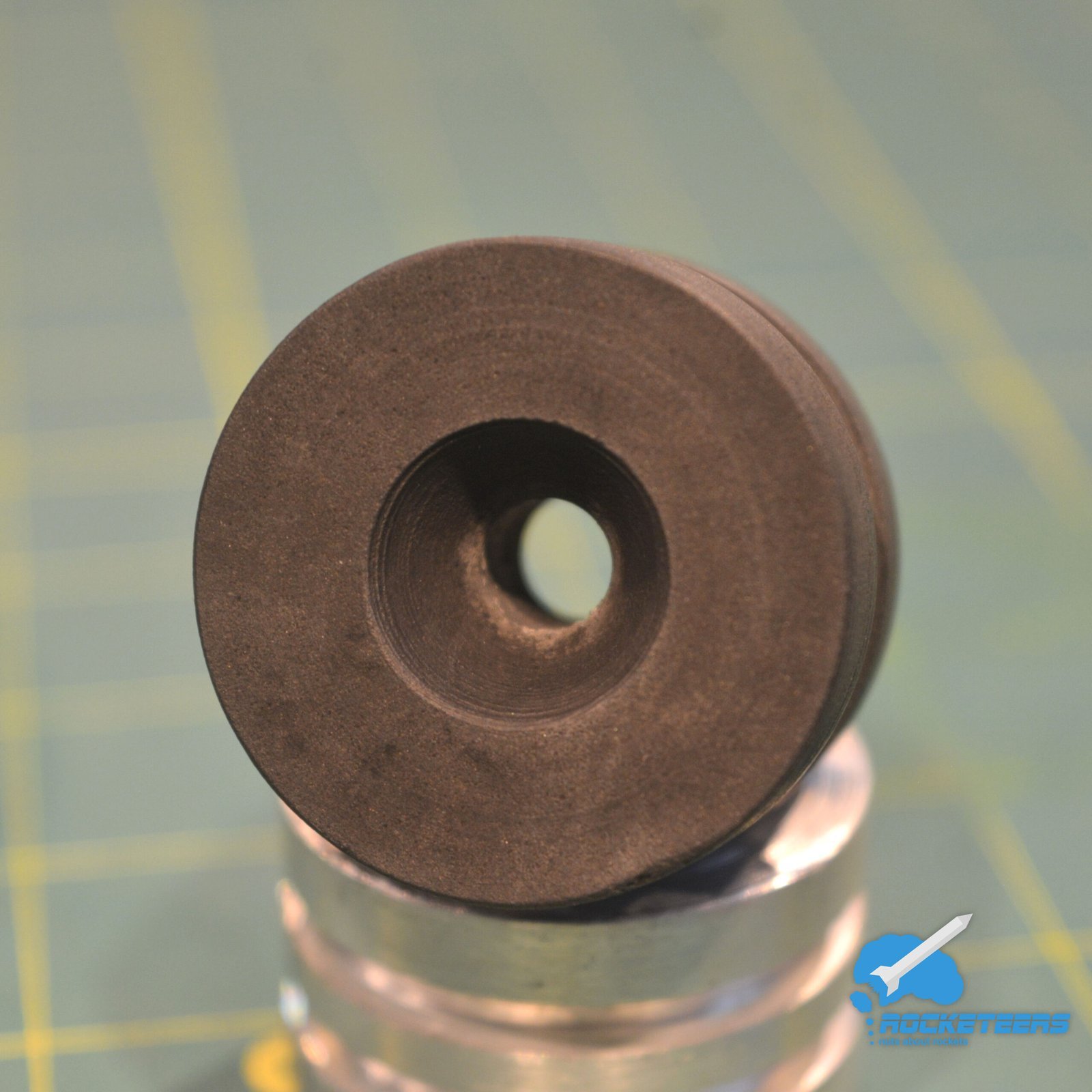

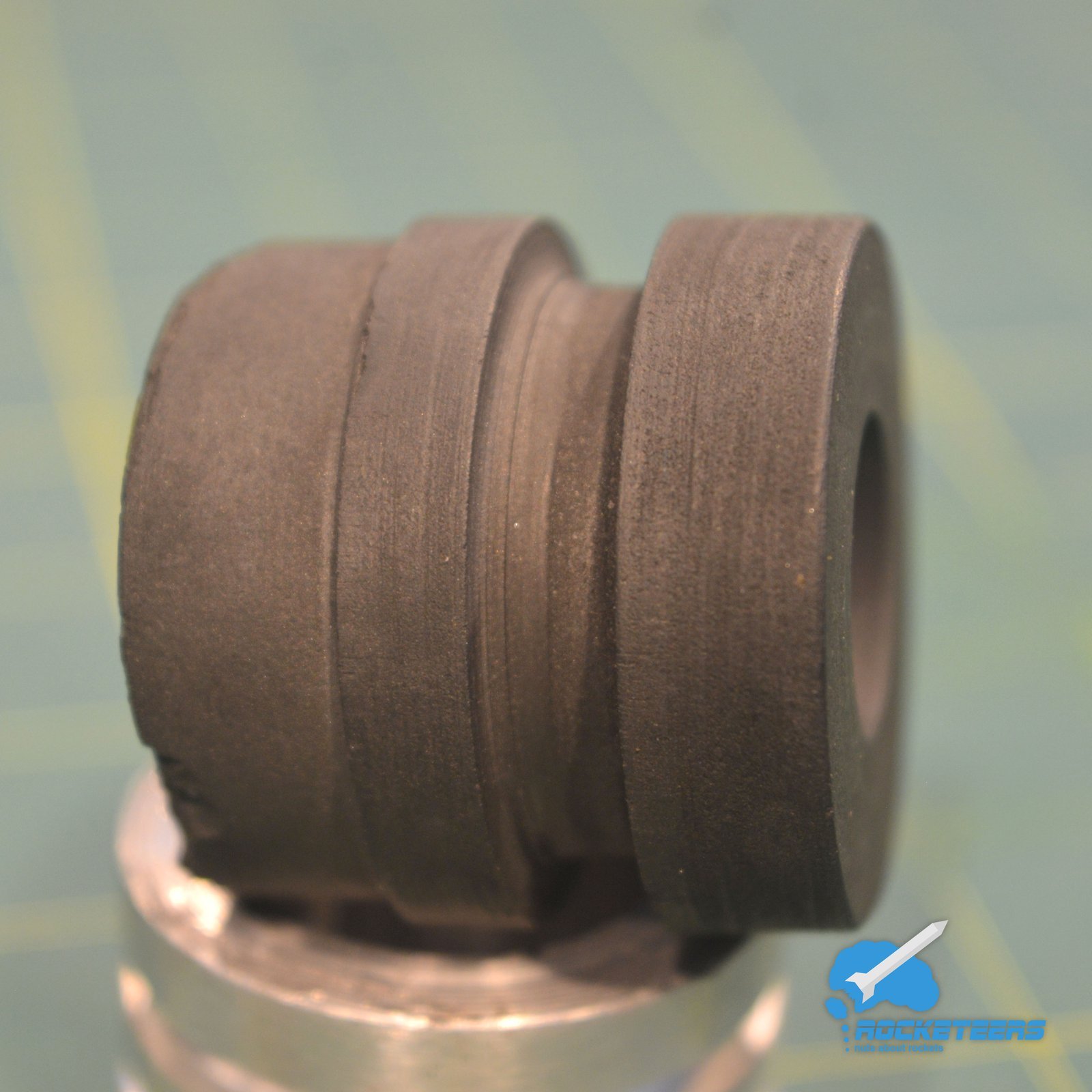

Graphite Nozzle

• Precision CNC Machined Graphite
• Superior thermal performance enhances efficiency and longevity.
• Silicon O-ring hermetic seal
• Weight : 35 gms
• Dimensions:
  • Outer diameter – 31.5 mm
  • Length – 30 mm
• Includes 1 per pack

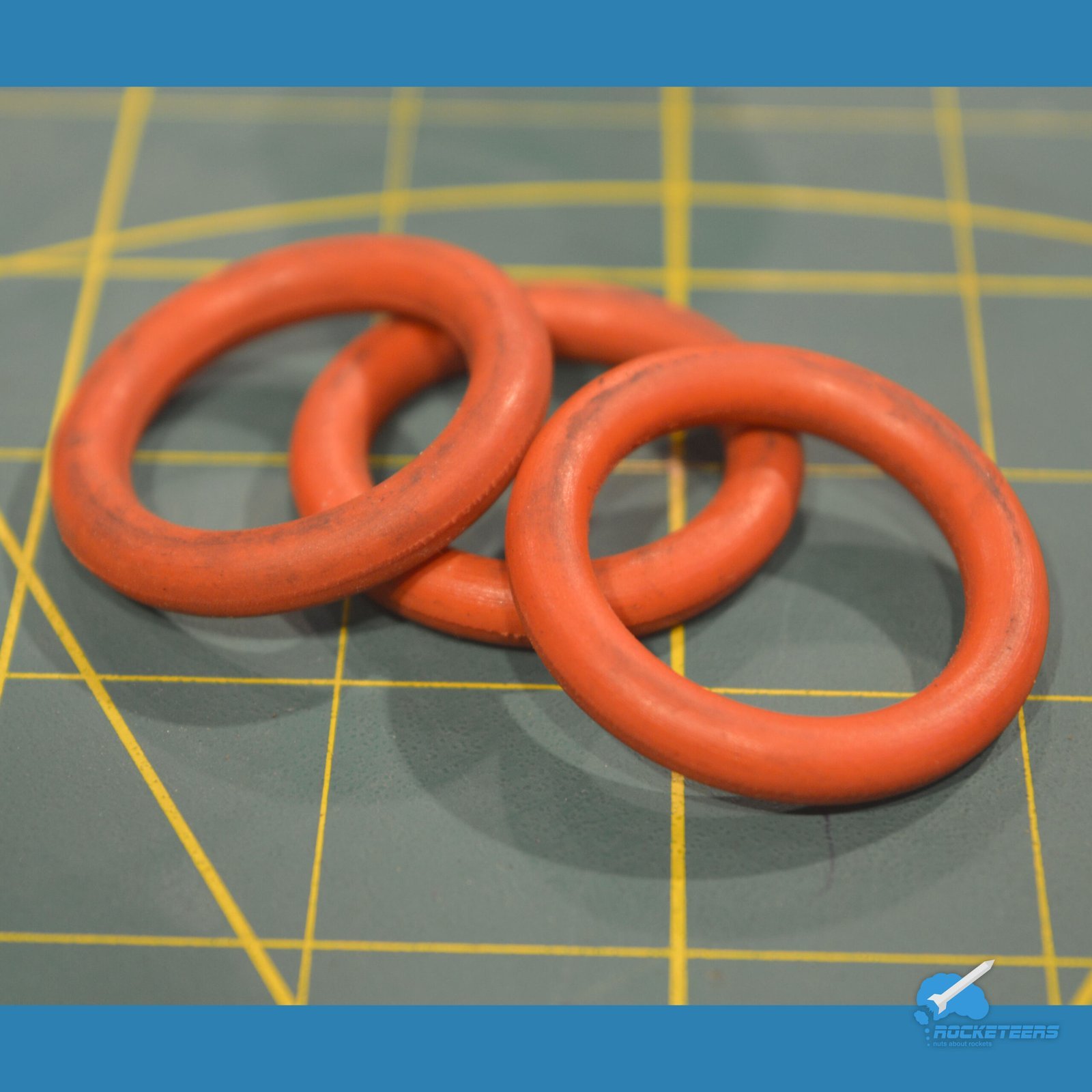

O Rings

• Weight : 5 gms
• High-Quality Silicon Hermetic Seals: Prevent gas leakage, ensuring optimal performance and safety.
• Includes 4 per pack

Liner

• Weight : 8 gms
• Flame resistant resin bonded high BF Sack-Kraft tube
• Protection: Shields the motor casing from high-temperature exhaust gases, extending the motor’s lifespan.
• Includes 2 per pack

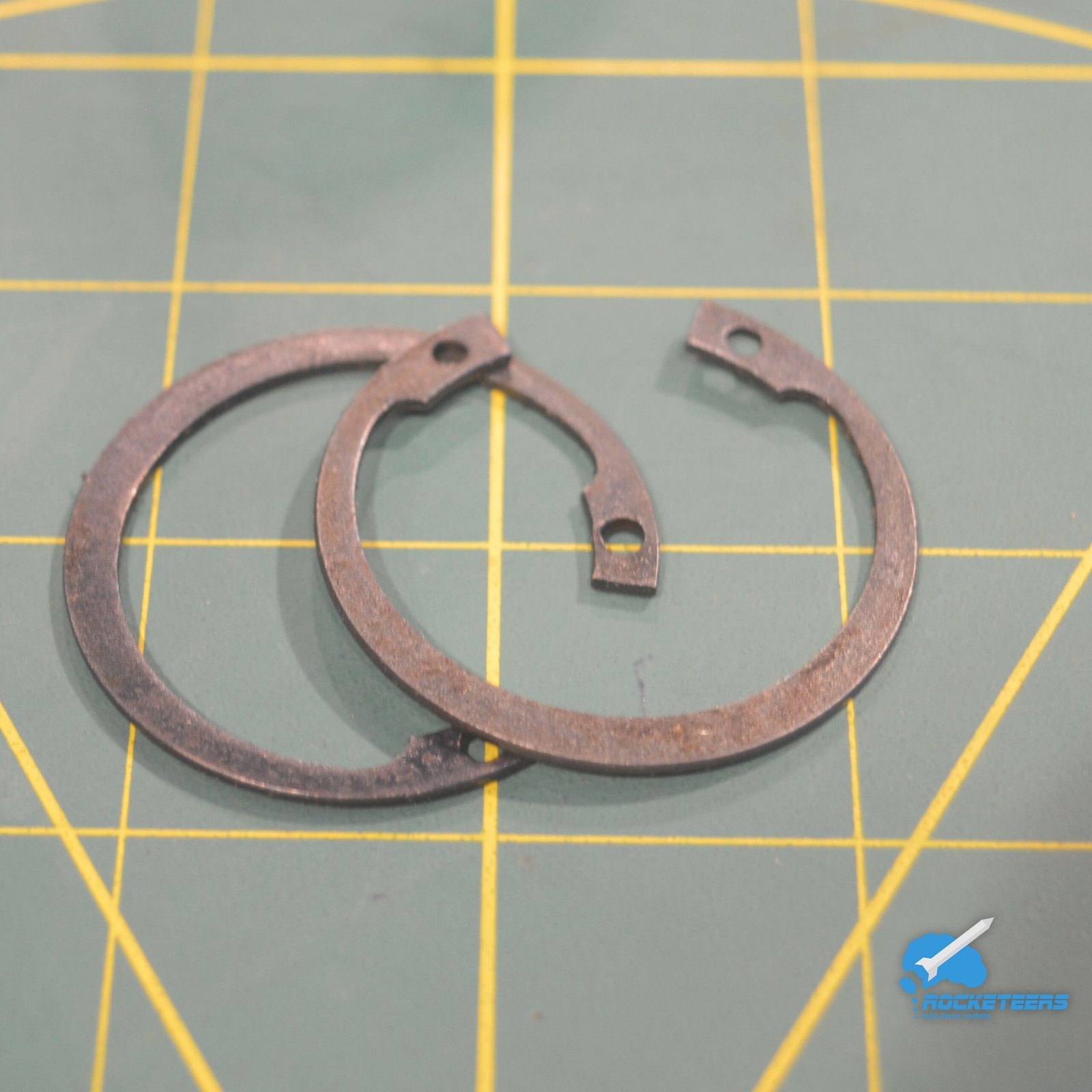

Circlips

• Weight : 8 gms
• High tensile & high performance
• Secure Fastening: Maintains the integrity of the motor assembly under high-pressure conditions.
• Includes 5 per pack

Perfect for enthusiasts seeking reliable and powerful thrust, our meticulously engineered H Class Motor meets the highest standards of rocketry performance. Unleash your potential and reach new heights with this essential component.
